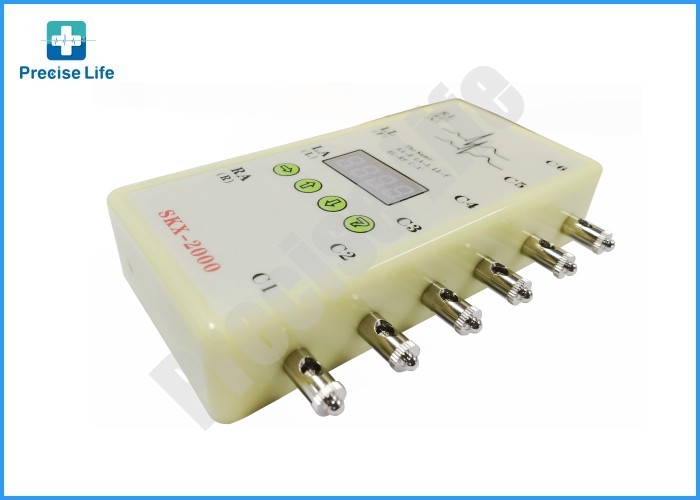

ECG simulator 10 leads ECG machine simulator with 2 type waveform patient monitor simulator build-in battery

Feature of medical simulator:

Specification of simulator:

The simulator can generate 2 types waveform
1.Normal ECG waveform
2.Plus-minus triangular waveform

Dimension: 15x10x3cm
N.W.: 0.35kg



Note:

1.The simulator will automatically generate Normal ECG waveform when connect to power
2.The LED display will be off automatically if without operation after 5 seconds, press any key will be returned to display

Key Description:

There are 4 keys, followed by selection keys, increase key, reducing key, the Enter key, in addition to a set of key combinations

Select Key:

This key is used to select the parameter you want to change; there are 4 LED tubes to display the four codes represent what is displayed,
The 1st LED representative waveform code, LED 2-4 representatives the parameter (2 is the value of one hundred, 3 representatives of ten, 4 representatives of bits)

Operating method described separately for each waveform:

1. Normal ECG waveform:

Heart rate setting range: 10-200bpm; (initial value: 60 bpm)
Signal amplitude fixed.

2. Plus-minus triangular waveform:
Frequency range: 10-300bpm; (initial value: 75 bpm)
Amplitude range: 0.1-4Mv (10: 0.1mV, 400: 4mV);

2 modes, Mode 1: Positive waveform; mode II: negative waveform; Use combinations key to choose.

Note: The signal amplitude settings:

amplitude range: 0.1mV-4mV (10: 0.1mV, 400: 4mV); (initial value: 100)
Please note that this amplitude setting will affect all waveforms.
Please note that the signal amplitude settings do not affect the amplitude of the ECG waveform.
